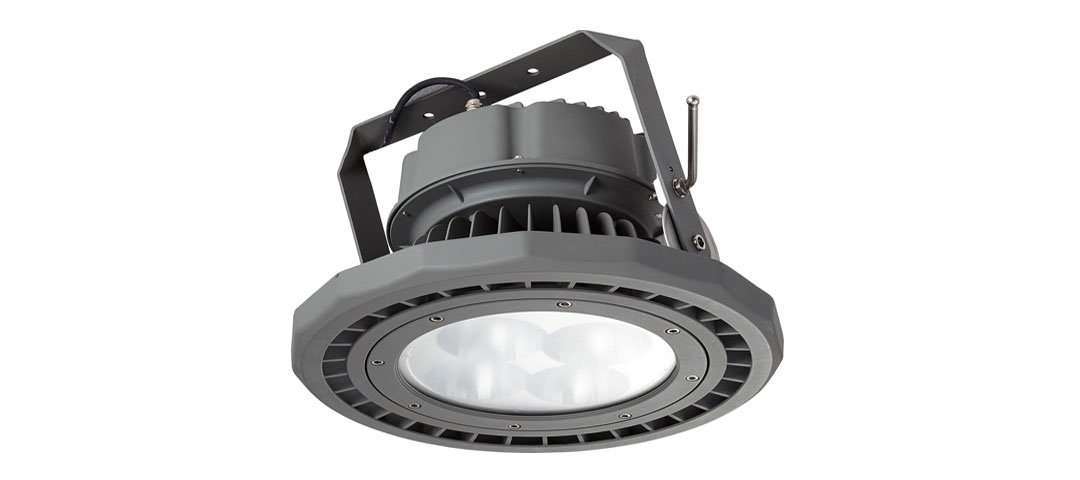

AG-F-G460TS

●Product Features

  • The principle of aerodynamic heat dissipation and the design of the hollow body make the heat dissipation of the lamp more rapid.
  • The power chamber and the light source cavity are designed separately to effectively disperse the respective heat.
  • The serialized product design meets the needs of different powers in various installation environments.
  • The elevation adjustment of the lamp can be done by hand through the bracket adjustment handle, and the installation adjustment is simple.
  • The frosted glass light-emitting surface makes the light of the lamp softer and effectively reduces glare.



● Applicable place

Urban roads, road tunnels, railway tunnels, underground passages, stadiums, billboards, buildings, parks, courtyards, residential areas, factories, and lighting areas requiring local and key areas.



●Technical Parameters

Model
AG-F-G460TS
Power
160W/200W/240W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
120LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
14KGS
Product size
460×356×279mm
