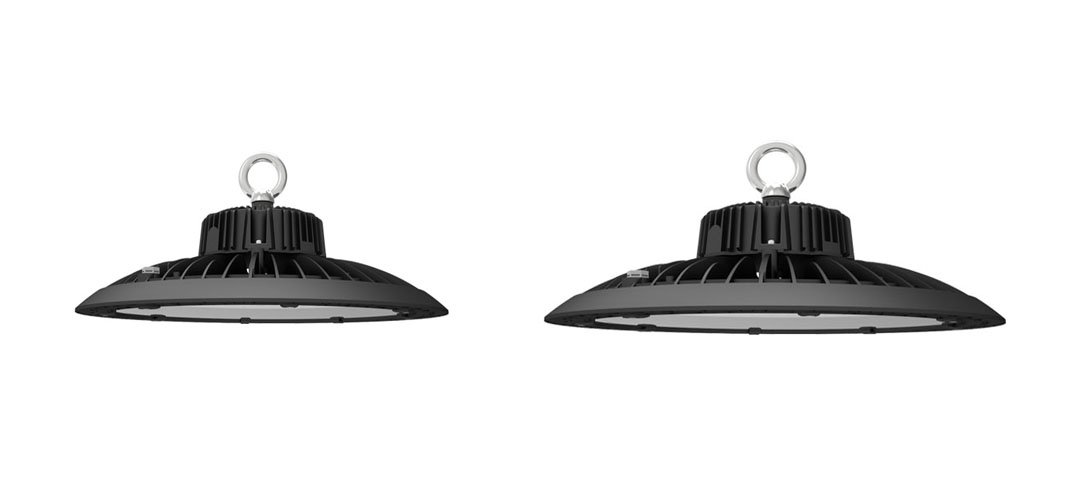

UFO Series
●Product Features
- Compact structure and high heat dissipation efficiency。
- With lifting rings, brackets, etc。
- 50% power saving, beautiful appearance and light weight。
- Life expectancy of up to 50,000 hours, low heat generation, high electro-optical conversion efficiency。
- Available in white, red, blue and amber colors to meet the needs of different environments。
- RGB color control can be realized to add a beautiful coat to the night view of the building。
● Applicable place
Industrial lighting products are suitable for workshops, factories, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, stadiums and other places where indoor and outdoor venue lighting is required.
●Technical Parameters
| Model |
AG-G-K100
|
| Power |
100W
|
| Input voltage |
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
|
| Power efficiency |
＞90%
|
| Light effect |
140LM/W
|
| Lamp efficiency |
＞90%
|
| Power factor |
＞0.98
|
| Color rendering index |
>70
|
| Color temperature |
2700-7000K
|
| Operating temperature |
-30℃-45℃
|
| Life/protection level |
50,000H/IP65
|
| Weight |
5.96KGS
|
| Product size |
∅335×160×∅25mm
|
| Model |
AG-G-K200
|
| Power |
200W
|
| Input voltage |
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
|
| Power efficiency |
＞90%
|
| Light effect |
140LM/W
|
| Lamp efficiency |
＞90%
|
| Power factor |
＞0.98
|
| Color rendering index |
>70
|
| Color temperature |
2700-7000K
|
| Operating temperature |
-30℃-45℃
|
| Life/protection level |
50,000H/IP65
|
| Weight |
5.96KGS
|
| Product size |
∅377×169×∅25mm
|
