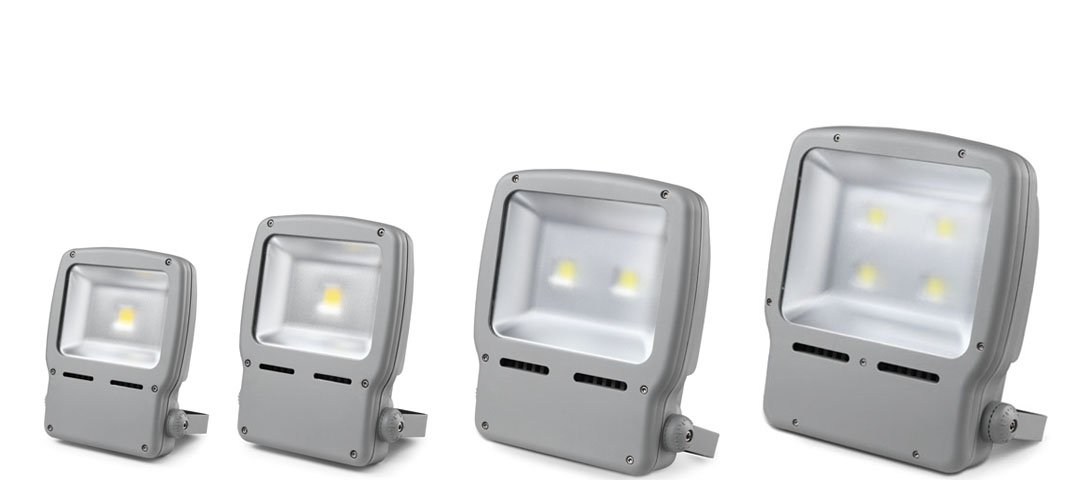

Robot series

●Product Features

  • A single 10W-100W high-power LED with independent intellectual property and multi-chip integrated package is used as a light source, with low light decay, pure light color and no ghosting;
  • Long service life, service life is more than 50,000 hours, according to the calculation of 12 hours per day, its service life is more than 10 years, and the maintenance cost is extremely low;
  • Start without delay, power can work normally, no need to wait, solve the long start process of traditional lamps, realize instant start and restart;
  • The color is more realistic and vivid. It can provide white, red, blue, green, yellow and other color lamps to meet the needs of different environments, adding a beautiful coat for the night scene;
  • The luminaire can be equipped with PLC power carrier dimming control system and Zingbee wireless dimming control system to realize LED intelligent control and realize secondary energy saving, further reducing energy consumption waste.



● Applicable place

Urban roads, road tunnels, railway tunnels, underground passages, stadiums, billboards, buildings, parks, courtyards, residential areas, factories, and lighting areas requiring local and key areas.



●Technical Parameters

Model
AG-G-L206FG-LSBD
Power
30W/50W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
1.02KGS
Product size
206.60×167.20×64.78mm

Model
AG-G-L309FG-LSBD
Power
60W/70W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
2.8KGS
Product size
309.90×250.80×92.50mm

Model
AG-G-L389FG-LSBD
Power
100W/120W/140W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
170LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
7.2KGS
Product size
389.87×334.40×109.25mm

Model
AG-G-L481FG-LSBD
Power
160W/180W/200W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
170LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
14.58KGS
Product size
481.50×418×138.38mm
