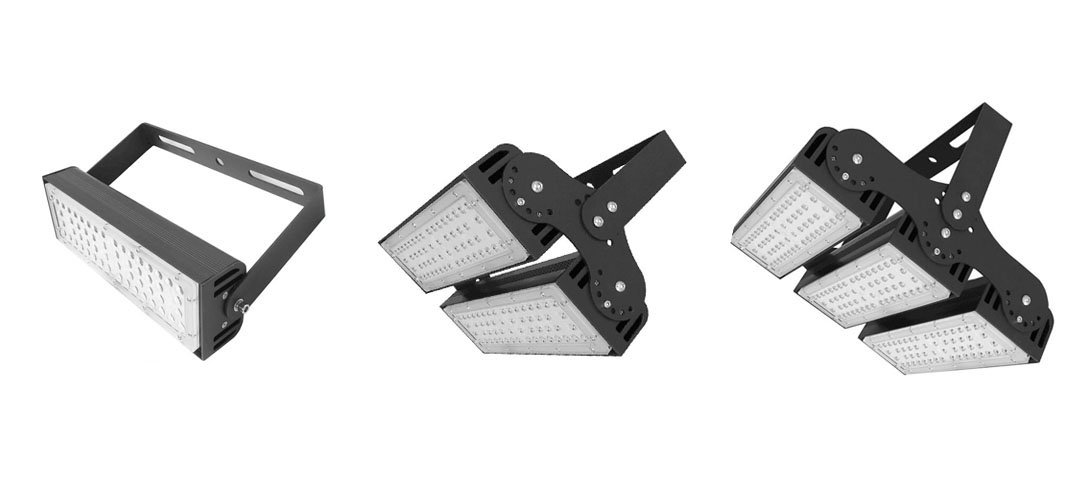

King Kong Series

●Product Features

  • Each module can be individually adjusted at an angle of ± 75 °, which is suitable for various lighting scenarios;
  • Module independent design, convenient assembly and disassembly, more convenient and quick maintenance;
  • Full power free serialization to fully solve the needs of the solution;
  • The main structure is made of GB 6063 aluminum alloy material, and the structure has good heat dissipation performance.
  • The lens is made of high-transmittance PC, which is dust-proof and waterproof, with multiple angles available and uniform light distribution;
  • Multi-channel shock-proof structure of the lamp body, with strong anti-collision and impact force;
  • The surface treatment of the radiator is anodized, and the frame and bracket are treated with high-tech environmental protection spraying, which is resistant to corrosion and rust;
  • Illumination angle: 70 * 145 degrees / 90 degrees / 60 degrees / 30 degrees / 60 * 90 degrees / 90 * 120 degrees.
  • Serial and parallel mode: 8 parallel 7.
  • Lens configuration: 56w (42w / 48w / 64w optional).
  • Body material: GB 6063 aluminum profile.



● Applicable place

Suitable for tunnels, workshops, large warehouses, gas stations, stadiums, metallurgical and various plant areas, engineering construction and other places.



●Technical Parameters

Model
AG-F-30JG
Power
30W/40w/50w
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
1.2KGS
Product size
294×86×178mm

Model
AG-F-60JG
Power
60W/70W/80W/90W/100W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
2.81KGS
Product size
194×288×200mm

Model
AG-F-90JG
Power
90W/100W/110W/120W/130W/140W/150W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
3.96KGS
Product size
302×288×200mm
