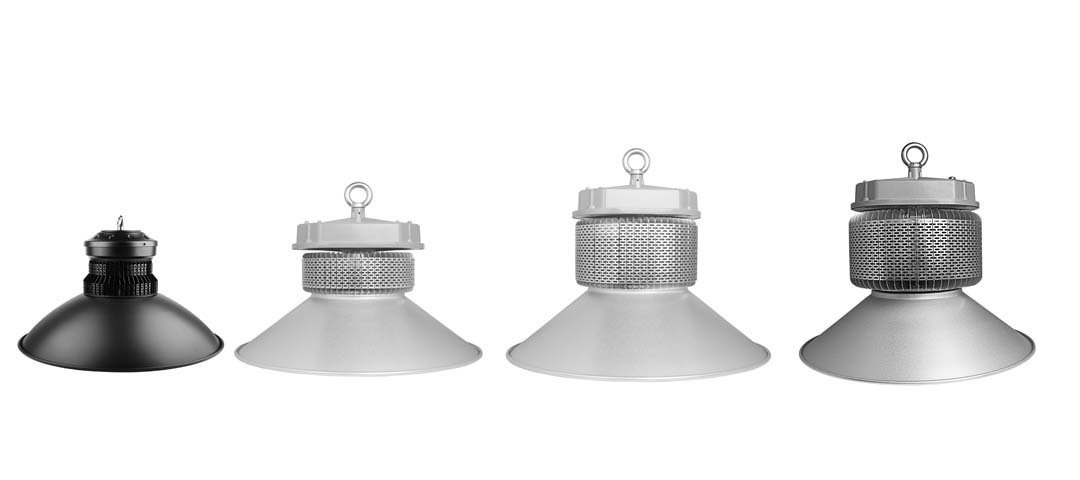

Fin mining lamp series

●Product Features

  • A single high-power LED with independent intellectual property and multi-chip integrated package is used as a light source, and the light decay is small, the light color is pure, and there is no ghost image;
  • The heat sink of the lamp body uses a finned heat sink, which has good heat dissipation effect;
  • The energy-saving effect is remarkable. The high-power LED light source is equipped with an imported high-efficiency power supply, which can replace the traditional mercury lamp, sodium lamp and metal halide lamp, and has obvious energy-saving advantages;
  • It is environmentally friendly and contains no pollution elements such as lead and mercury. It has no pollution to the environment; it has good color rendering and is more realistic in its appearance. A variety of light colors are available to meet different environmental needs. It eliminates the depressed emotion caused by the high or low color temperature of traditional lamps, which is visually comfortable and improves the work efficiency of workers;
  • The decorative effect is excellent, with a special surface treatment process, the appearance can choose a variety of colors.



● Applicable place

Industrial lighting products are suitable for workshops, factories, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, stadiums and other places where indoor and outdoor venue lighting is required.



●Technical Parameters

Model
AG-G-G400
Power
50W/60W/70W/80W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
4.8KGS
Product size
286×251×190mm

Model
AG-G-G530S
Power
120W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
4.8KGS
Product size
324×280×183mm

Model
AG-G-G530M
Power
150W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
6KGS
Product size
404×360×263mm

Model
AG-G-G530L
Power
160W/180WW/200W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
7KGS
Product size
422×387×288mm
