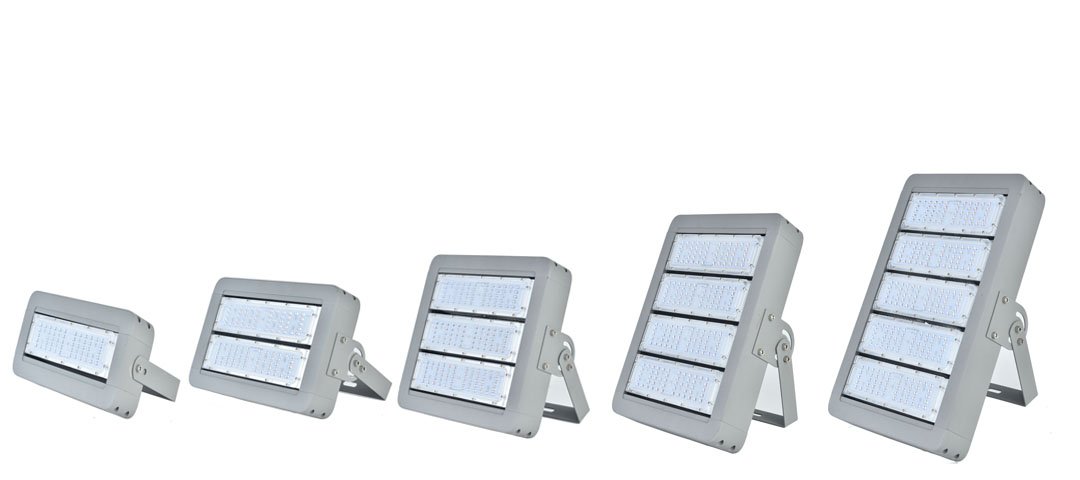

Apple series

●Product Features

  • Integrated extruded aluminum heat dissipation structure, economical and practical;
  • High light efficiency, low light decay, built-in LED light source module for easy maintenance and replacement;
  • The overall high light transmission and anti-aging PC lens effectively ensures the luminous flux output of the lamp;
  • Special sealing structure design, the protection level of the lamps reaches IP65;
  • Special mounting bracket design allows the luminaire to be adjusted in three dimensions;
  • External constant current drive waterproof power supply, no stroboscopic and can add dimming and intelligent control functions according to user requirements;
  • Illumination angle: 60°/90°/70°*130°。



● Applicable place

Urban roads, road tunnels, railway tunnels, underground passages, stadiums, billboards, buildings, parks, courtyards, residential areas, factories, and lighting areas requiring local and key areas.



●Technical Parameters

Model
AG-F-30PG
Power
30W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
2.66KGS
Product size
163×350×130mm



Model
AG-F-60PG
Power
60W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
3.61KGS
Product size
246×350×130mm



Model
AG-F-90PG
Power
90W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
4.56KGS
Product size
329×350×130mm



Model
AG-F-120PG
Power
120W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
5.51KGS
Product size
412×350×130mm



Model
AG-F-150PG
Power
150W
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
6.46KGS
Product size
495×350×130mm
