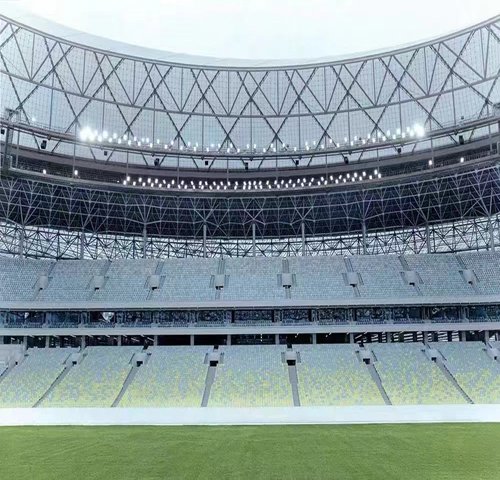

Football Field
2021-08-20
AG-FL400R
2021-06-03

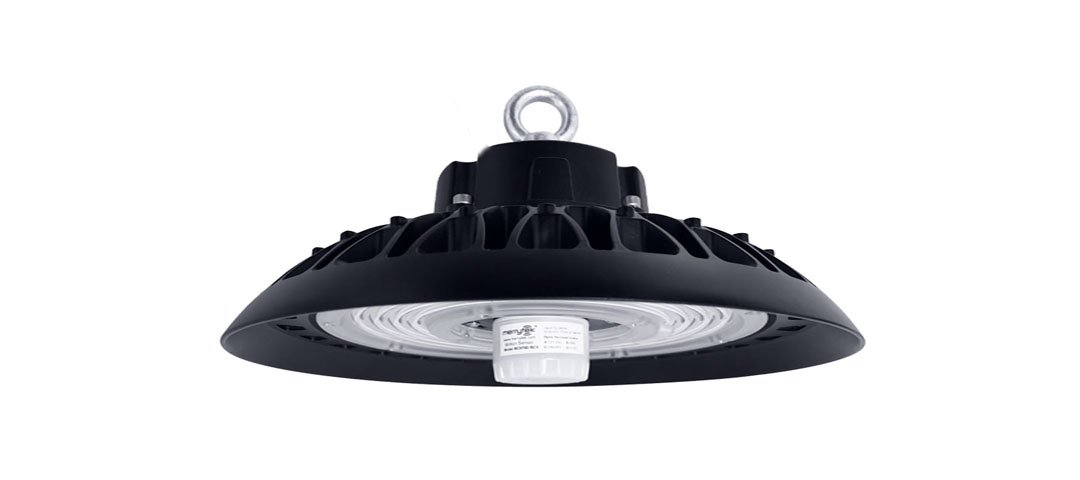

AG-UFOH100J

●Product Features

  • Efficacy: Up to 160 lm/w
  • LED Chip: LUMILEDS
  • SDCM: <5
  • Beam Angle: 60°/90°/120° PC lens
  • IP Rating: IP65
  • Controls: Microwave sensor(optional)
  • Installation: Eye Bolt/Bracket
  • Certifications: CE, RoHS
  • Warranty: 5 years



● Applicable place

Warehouses, libraries, workshops, shopping malls, supermarkets, shops, restaurants, sports centers, cinemas, hospitals, clothing stores, bars and other indoor lighting places.



●Technical Parameters

Model
AG-UFOH100J
Power
100W
Input voltage
100-277VAC;50/60Hz
Power efficiency
>93%
Light effect
160LM/W
Lamp efficiency
>93%
Power factor
>0.90
Color rendering index
>70
Color temperature
3000K/4000K/5000K/5700K/6500K
Operating temperature
-20℃~+50℃
Life/protection level
100,000H/IP65
Weight
2.0KGS
Product size
290×174×∅25mm



Model
AG-UFOH150J
Power
150W
Input voltage
100-277VAC;50/60Hz
Power efficiency
>93%
Light effect
160LM/W
Lamp efficiency
>93%
Power factor
>0.90
Color rendering index
>70
Color temperature
3000K/4000K/5000K/5700K/6500K
Operating temperature
-20℃~+50℃
Life/protection level
100,000H/IP65
Weight
2.5KGS
Product size
340×181×∅25mm

Model
AG-UFOH200J
Power
200W
Input voltage
100-277VAC;50/60Hz
Power efficiency
>93%
Light effect
160LM/W
Lamp efficiency
>93%
Power factor
>0.90
Color rendering index
>70
Color temperature
3000K/4000K/5000K/5700K/6500K
Operating temperature
-20℃~+50℃
Life/protection level
100,000H/IP65
Weight
3.5KGS
Product size
380×183×∅25mm
