AG-G-WD520

UFO Series
2019-03-13
AG-G-YQ520
2019-03-13

AG-G-WD520

●Product Features

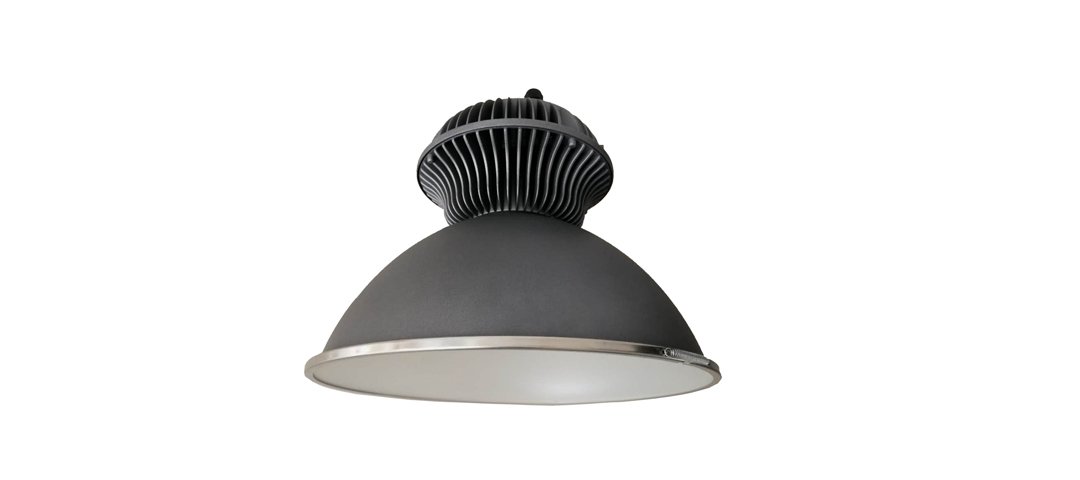

  • A single high-power LED with independent intellectual property and multi-chip integrated package is used as a light source, and the light decay is small, the light color is pure, and there is no ghost image;
  • The structure of the radiator is beautiful, the surface is die-casted and sprayed, and the IP65 standard is achieved. The anti-corrosion, waterproof and dustproof performance is good;
  • The energy-saving effect is remarkable. The high-power LED light source is equipped with an imported high-efficiency power supply, which can replace the traditional mercury lamp, sodium lamp and metal halide lamp, and has obvious energy-saving advantages;
  • It is environmentally friendly and contains no pollution elements such as lead and mercury. It has no pollution to the environment; it has good color rendering and is more realistic in its appearance. A variety of light colors are available to meet different environmental needs. It eliminates the depressed emotion caused by the high or low color temperature of traditional lamps, which is visually comfortable and improves the work efficiency of workers;
  • The decorative effect is excellent, with a special surface treatment process, the appearance can choose a variety of colors.



● Applicable place

Industrial lighting products are suitable for workshops, factories, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, stadiums and other places where indoor and outdoor venue lighting is required.



●Technical Parameters

Model
AG-G-WD520
Power
80W/90W/100W/110w
Input voltage
AC(85V-265V)/DC(12V/24V) Frequency(50Hz-60Hz)
Power efficiency
>90%
Light effect
140LM/W
Lamp efficiency
>90%
Power factor
>0.98
Color rendering index
>70
Color temperature
2700-7000K
Operating temperature
-30℃-45℃
Life/protection level
50,000H/IP65
Weight
5.96KGS
Product size
206.60×167.20×64.78mm
